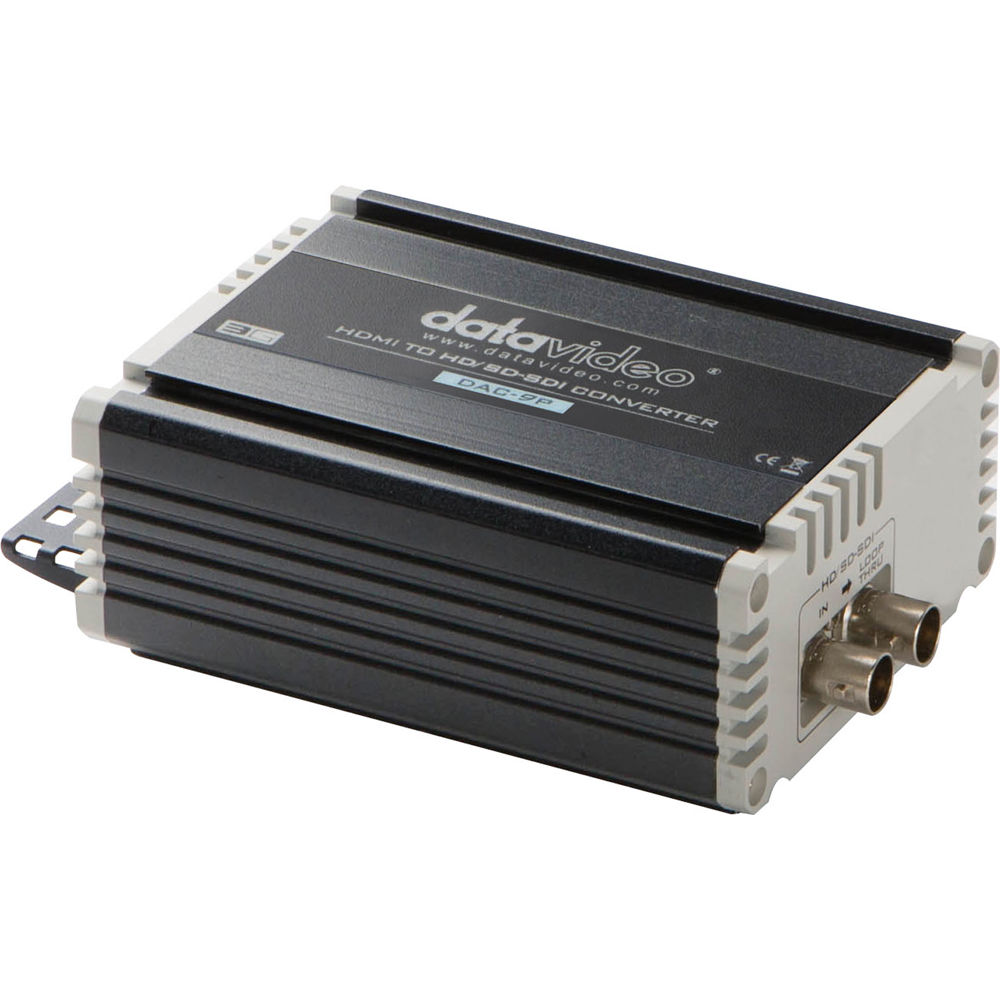

Datavideo DAC-9 HDMI to SDI Converter
In stock
Key Features
- HDMI to SDI Conversion
- Self-Adhesive Straps
The DAC-9 HDMI to SDI Converter from Datavideo allows you to convert an incoming HDMI signal to an SDI output signal. This enables signals from DV or HDV cameras to be used with SDI switchers. This unit supports standard- and high-definition signals. Self-adhesive straps on the back of the converter make it easy to attach to a tripod leg.
In stock
The DAC-9 HDMI to SDI Converter from Datavideo allows you to convert an incoming HDMI signal to an SDI output signal. This enables signals from DV or HDV cameras to be used with SDI switchers. This unit supports standard- and high-definition signals. Self-adhesive straps on the back of the converter make it easy to attach to a tripod leg. A power adapter is included.
HDMI to SDI Conversion
- Use this converter to translate an HDMI input signal into an SDI output signal.
Input
- 1x HDMI 1.4
Please note: DAC-9P is not compatible with the HDMI output from the Sony HDR-FX7 camera.
Output
- 2x HD/SD-SDI
Supported Resolutions
- 1080p60 / 1080p59.94 / 1080p50
- 1080p30 / 1080p29.97 / 1080p25 / 1080p24 / 1080psf23.98
- 1080psf30 / 1080psf29.97 / 1080psf25 / 1080psf24 / 1080psf23.98
- 1080p30 / 1080p25 / 1080p24
- 1080i60 / 1080i59.94 / 1080i50
- 720p60 / 720p59.94 / 720p50
- 576i / 480i
Power
- 12 V 0.5A 5W
- 110/220 V
Dimensions
- 4 x 3.25 x 1″ (10.1 x 8.2 x 2.5 cm)
Weight
- .5 lb (.2 kg)
