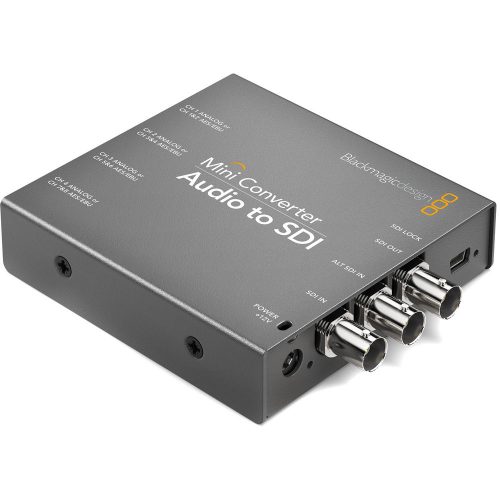

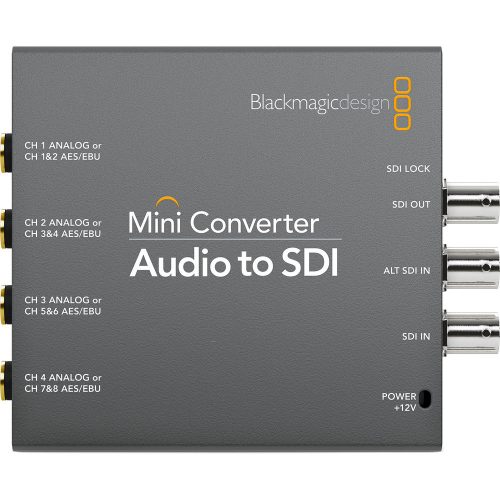

Blackmagic Design Audio to SDI Mini Converter
In stock
Key Features
- Embed Audio into up to 1080p SDI Signals
- Four 1/4″ Audio Input Jacks
- Supports 4 Channels of Analog Audio
- Supports 8 Channels of AES/EBU Audio
Embed audio into 3G/HD/SD-SDI sources in up to 1080p60 resolution with the Audio to SDI Mini Converter from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4″ jacks.
In stock
Embed audio into 3G/HD/SD-SDI sources in up to 1080p60 resolution with the Audio to SDI Mini Converter from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4″ jacks.
In addition to a dedicated SDI input, the converter also features a redundant SDI input that allows you to run a backup cable in case the first is lost. This is useful in mission-critical applications, especially outdoors or in crowded venues where there is a higher chance of damage to the cable.
SDI Input
- 1 x SDI on BNC (switchable between 3G/HD/SD)
- 1 x 3G/HD/SD-SDI redundant input (automatically switches over if main SDI input is lost)
Audio Input
- 4 x 1/4″ jacks support 4 channels of balanced analog, or 8 channels of balanced AES/EBU digital audio
SDI Output
- 1 x SDI on BNC (switchable between 3G/HD/SD)
SDI Auto Switching
- Auto-detection of 3G/2K/HD/SD-SDI
Updates and Configuration
- Via USB 2.0 high-speed (480 Mb/s)
Reclocking
- Yes
SDI Compliance
- SMPTE 292M/259M/296M/372M/424M-B/425M
- ITU-R BT.656/BT.601
SDI Video Rates
- SDI video connections are switchable between HD and SD
SDI Video Sampling
- 4:2:2, 4:4:4
SDI Audio Sampling
- Television standard sample rate of 48 kHz and 24-bit
SDI Color Precision
- 4:2:2, 4:4:4
SDI Color Space
- YUV, RGB
SDI Auto Switching
- Automatically selects between 3G/HD/SD
SDI Format Support
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080PsF: 30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- 525i: 59.94 NTSC
- 625i: 50 PAL
- 2K Format Support
- 2K DCI 25p/24p/23.98p
- 2K DCI 25PsF/24PsF/23.98PsF
Software Control
- Mac OS X and Windows software upgrade via USB
Internal Software Upgrade
- Via included updater application
Operating System
- Mac OS X 10.11 El Capitan, macOS Sierra or later
- Windows 8.1 or Windows 10
Settings Control
- Mini switches or USB software
Power Supply
- +12 V universal power supply included, with international socket adapters for all countries and cable tie point
Power Consumption
- 8.4 W
Operational Voltage Range
- 12 VDC
Operating Temperature
- 32 to 104°F / 0 to 40°C
Storage Temperature
- -4 to 113°F / -20 to 45°C
Relative Humidity
- 0 to 90% non-condensing
Dimensions
- 4.5 x 3.6 x 0.9″ / 11.5 x 9.2 x 2.3 cm
Weight
- 7.6 oz / 215 g
