Name: TVLogic RKM-356A Triple 5.6" 3G-SDI Multichannel LCD Rack Monitor
SKU: CTTVL356ARM
Availability: BackOrder

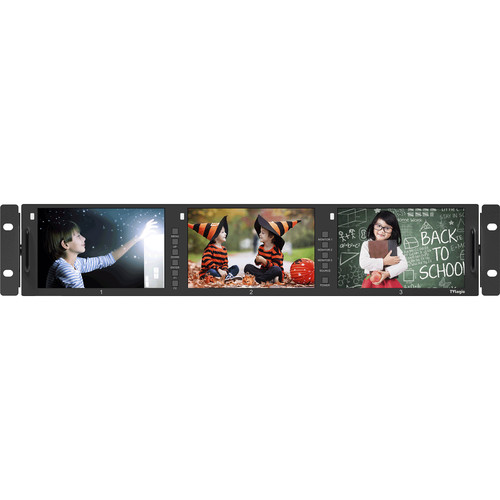

The TVLogic RKM-356A 3G-SDI Multichannel LCD Rack Monitor features three 5.6″ IPS LCD screens with a 1280 x 800 resolution. Each screen offers wide viewing angles of 170° (horizontal and vertical) with a maximum brightness of 300 cd/m² and contrast ratio of 500:1. The screens support multiple formats including 3G/HD/SD-SDI, and HDMI. Each screen features a built-in internal speaker and supports stereo audio out using a phone jack. This triple LCD monitor can be VESA or rack-mounted.

Three 5.6″ screens with 1280 x 800 resolution

Native 16:10 wide screens

300 cd/m² brightness and 500:1 contrast ratio

170°/170° (H / V) wide viewing angles

1:1 pixel mapping modes for SD/HD

Compatible with various SDI signals formats: 480i, 576i, 720p, 1035i, 1080i, 1080p, 1080PsF

Compatible with composite signals

Supports HDMI (with HDCP) input, and DVI (without HDCP) input signals

Waveform and vectorscope

Embedded audio level meter function

Luma (Y’) zone check (color/zebra type), range error function

Internal speaker with embedded audio and external audio input

Stereo audio out through phone jack and external audio input

Adjust user configuration using the control knob on front of the monitor

Blue-only, mono, focus assist, H/V delay function

Internal pattern generator (0 to 100% gray/color bar + PLUGE)

Markers and safety areas: Center marker, safety area marker, aspect marker, display size (scan)

1:1 scan/zoom function: Displays original image resolution without scaling, and zoom function enlarges the original image

Externally controlled by using parallel switch and network via a cable connection, without any requirement of attaching a peripheral equipment to the unit
