From Sennheiser, this locking 1/8″ mini connector is intended for custom wiring lavalier and head-worn microphones, for use with Evolution series body-pack wireless microphone transmitters.
Microphones for Wireless, Pro Audio, Wireless Microphone Systems
SENNHEISER CARDIOID CONDENSER LAVALIER MICROPHONE FOR USE WITH THE EVOLUTION WIRELESS SERIES TRANSMITTERS
Availability:
In stock
Small cardioid clip-on microphone especially for speech applications in noisy environment. Feedback-rejecting.High speech intelligibility. Easy attachment on clothing.
In stock

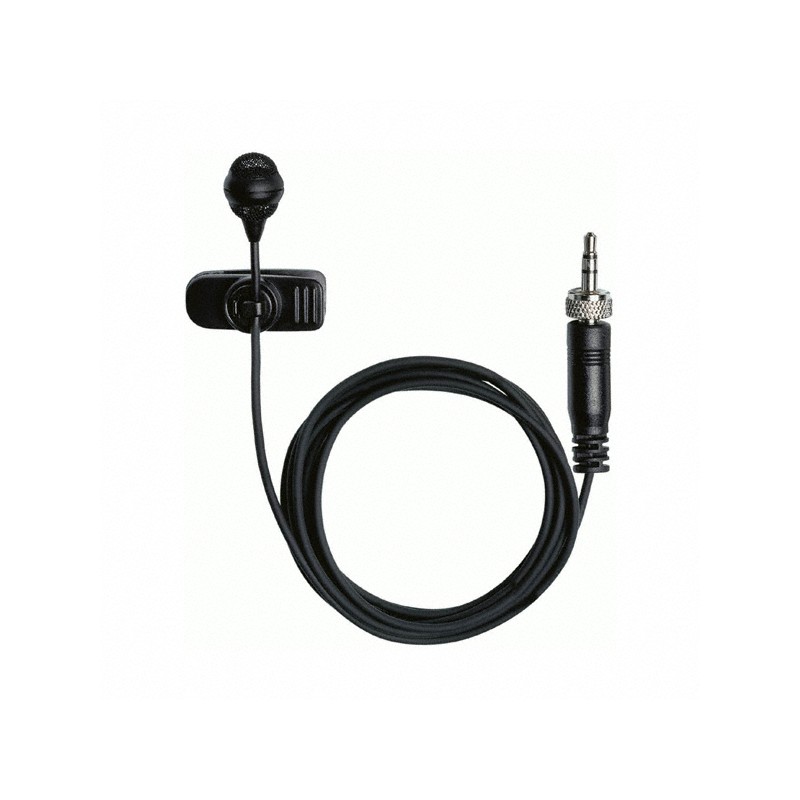

Cardioid lavalier (lapel) microphone for use with evolution Wireless SK body pack transmitters.
- High speech intelligibility
- High feedback rejection
- Easy attachment on clothing
- Mini jack for bodypack transmitters from evolution wireless series
Dimensions
- Ø 12.5 mm
Frequency response (Microphone)
- 50…..18000 Hz
Transducer principle (Microphone)
- Permanent polarized condenser
Connection cable
- mini jack
Cable length
- 1,6 m
Pick-up pattern
- cardioid
Sensitivity in free field, no load (1kHz)
- 40mV/Pa
Equivalent noise level
- 31 dB
Maximum sound pressure level (passive)
- 120 dB
Operating voltage (stand alone)
- 7,5 V
