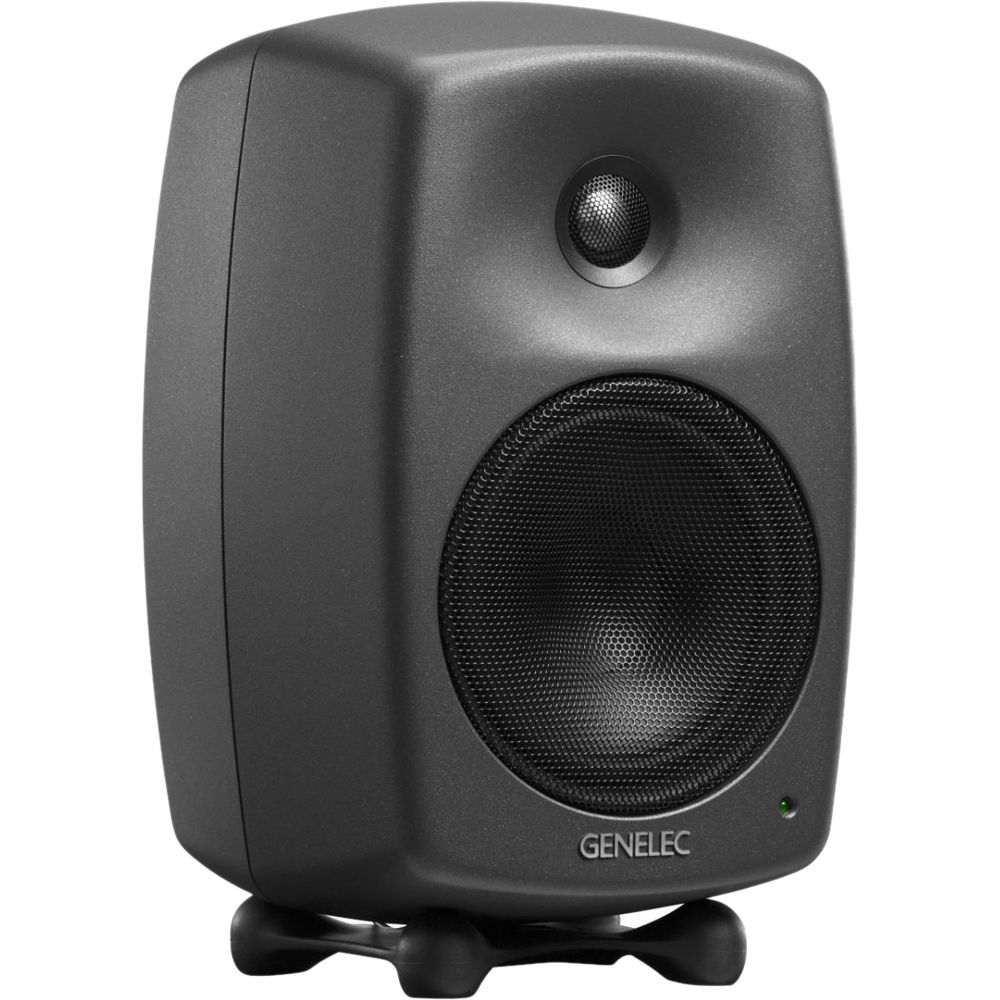

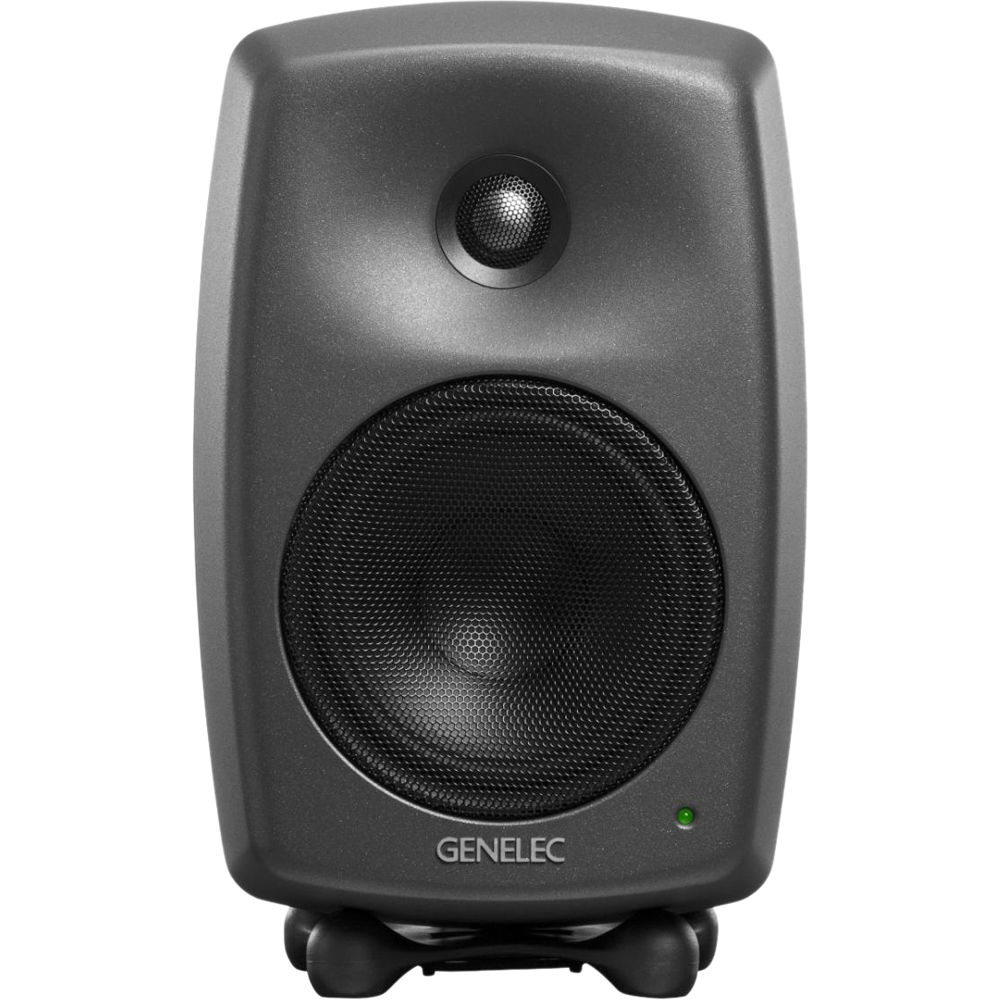

Genelec 8030C Active Two-Way 5″ Studio Monitor (Single)

Inputs

• 1 x XLR balanced

Frequency Response

• 54 Hz – 20 kHz (± 2.0 dB)

Cut-Off Frequency

• Lower Cut-Off Frequency, -6 dB: < 47 Hz
• Upper Cut-Off Frequency, -6 dB: > 25 kHz

Crossover Frequency

• 3.0 kHz

LF Amplifier

• 50W

HF Amplifier

• 50W

Maximum SPL

• Short Term: ≥104 dB @ 3.3′ / 1 m
• Long Term (RMS): 96 dB @ 3.3′ / 1 m
• Peak Output (Pair): ≥ 110 dB

Noise Level

• Noise Level: ≤ 5 dBA (self-generated in free field at 3.3′ / 1 m on axis)

THD

• Harmonic Distortion (at 85 dB SPL @ 3.3′ / 1 m on axis):
• 50 to 100 Hz: < 2 %
• 100 Hz or Higher: < 0.5 %

Low Frequency Driver

• 5.0″ / 127.0 mm

High Frequency Driver

• 0.8″ / 19.1 mm metal dome

Level Control

• Dial: -6 to +6 dB

Tone Controls

• Treble Tilt Control Operating Range: 0 to –2 dB @ 15 kHz
• Bass Roll-Off Control: –4 dB step @ 55 Hz
• Bass Tilt Control Operating Range in –2 dB Steps: 0 to –6 dB @ 100 Hz
• Desktop Control: –4 dB @ 160 Hz

Mounting Options

• Tabletop (with included Iso-Pod)
• 3/8″ thread on base
• Two 0.24 x 0.39″ (6 x 10 mm) threaded holes for Omnimount size 20.5
• brackets or the included keyhole wall-mount adapter

Enclosure Material

• Die-cast aluminum

Power Supply (AC)

• 100 – 240 VAC, 50/60 Hz

Distortion

• Amplifier System Distortion at Nominal Output: THD < 0.05 %

Voltage Range

• ±10%

Power Consumption

• Idle: 3 W
• Standby: < 0.5 W
• Full Output: 60 W

Dimensions (H x W x D)

• With Iso-Pod: 11.8 x 7.4 x 7.0″ / 299.0 x 189.0 x 178.0 mm
• Without Iso-Pod: 11.2 x 7.4 x 7.0″ / 285.0 x 189.0 x 178.0 mm

Weight

• 11.0 lb / 5.0 kg
