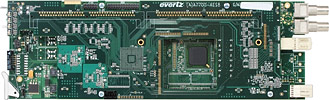

Evertz 7721AD8-HD & 7721AD8-B-HDHD/SD-SDI 4 Group Audio De-Embedder
In stock
Features
- Audio de-embedding from 1.5 Gbs HD or 270 Mbs SD video
- Automatic detection of input video standard
- Two 1.5 Gbs HD or 270 Mbs SD serial video outputs
- Supports 24-bit AES audio de-embedding for HD and 20-bit AES audio de-embedding for SD
- Flexible 16×16 audio channel routing for channel re-mapping
- Dolby E® compliant with VANC decode and output of Dolby™ metadata
- Card edge display for status and miniature bargraphs for audio peak levels
- Card edge LEDs indicate video and audio signal presence and module fault
The 7721AD8-HD Audio De-embedder extracts embedded audio from all 4 groups of a 1.5Gb/s serial HD or a 270Mb/s serial SD video signal as specified by SMPTE ST 299 or ST 272 respectively. The module supports 24-bit AES audio de-embedding for HD and 20-bit audio de-embedding for SD. Up to 16 selected channels may be de-embedded and directed to 8 AES outputs. In addition, a full 16×16 audio channel router is available for channel re-mapping.
The 7721AD8-HD is Dolby E® compliant and handles Dolby E® Metadata. Metadata is optionally de-embedded from VANC and can be provided as an output for downstream devices like Dolby E® or Dolby AC3® Encoders.
VistaLINK® enables control and configuration capabilities via Simple Network Management Protocol (SNMP). This offers the flexibility to manage the module status monitoring and configuration locally or remotely.
Serial Video Input
Standard
- SMPTE ST 292-1 (1.5Gb/s), (1080i/60, 1080i/59.94, 1080i/50, 1080p/30sF, 1080p/29.97sF, 1080p/25sF, 1080p/24sF, 1080p/23.98sF, 720p/60, 720p/59.94), 1035i/60, 1035i/59.94,1080p/30, 1080p/29.94, 1080p/25, 1080p/24, 1080p/23.98, 720p/50)
- SMPTE ST 259 (270Mb/s), 525 or 625 line
Number of Inputs
- 1
Connector
- BNC per IEC 61169-8 Annex A
Embedded Audio Input
Standard
- SMPTE ST 299-1 – 24 bit 48kHz synchronous
- SMPTE ST 272 – 20 bit 48kHz synchronous
Metadata Output
Type
- Dolby E® Metadata (RS-422)
Connector
- DB15 to BNC 6ft Breakout cable or terminal block
Baud Rate
- 115,200 baud (as per Dolby E® usage)
Serial Video Outputs Re-clocked
Standard
- Same as input
Number of Outputs
- 2
Connectors
- BNC per IEC 61169-8 Annex A
Return Loss
- 15dB up to 1.5Gb/s
Wide Band Jitter
- < 0.2UI
AES Audio Outputs
Standard
- SMPTE ST 276, single ended AES
Number of Outputs
- 8
Connector
- DB15 to BNC 6ft Breakout cable or terminal block
Sampling Rate
- 48kHz
Impedance
- 75Ω unbalanced or 110Ω balanced
Resolution
- Up to 24 bit
Signal Level
- 1V p-p ±0.1V @ termination load
Electrical
Voltage
- +12V DC
Power
- 11 Watts
EMI/RFI
- Complies with FCC Part 15, Class A, EU EMC Directive
Physical
Number of slots
- 1
