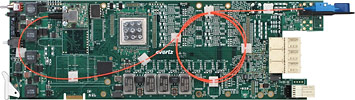

Evertz 7707VR-4-HS CARD QUAD SD FIBER TRANSMITTER/RECEIVER

Single card demultiplexer for four synchronous or asynchronous 270Mb/s SDI or DVB-ASI video signals
• SDI Video regeneration on outputs
• Signal transport over fiber uninterrupted by loss of any SDI or DVB-ASI input feed
• Transparently passes embedded AES or any other data in the horizontal or vertical ancillary data space
• Comprehensive signal and status monitoring via four-digit card-edge display
• VistaLINK™ – enabled for remote monitoring and control when installed in a 7700FR-C frame with 7700FC VistaLINK™ Frame Controller
• Fully Hot-swappable from front of frame with no fiber disconnect/reconnect required
• Supports single-mode and multi-mode fiber optic cable
• Accepts any wavelength in the 1270nm to 1610nm range
• SC/PC, ST/PC, FC/PC connector options

Optical Input:

• Number of Inputs: 1
• Connector: Female SC/PC, ST/PC, FC/PC
• Return Loss: >25dB
• Operating Wavelength: 1270nm to 1610nm
• Maximum Input Power: 0dBm
• Optical Sensitivity
• Standard Version: -18dBm
• -H Version: -28dBm

Serial Video Outputs:

• Standards: SMPTE 259M-C, DVB-ASI
• Number of Outputs: 4 independent SDI or DVB-ASI 270Mb/s signals
• Connector: BNC per IEC 169-8
• Signal Level: 800mV nominal
• DC Offset: 0V ±0.5V
• Rise and Fall Time: 600ps nominal
• Overshoot: <10% of amplitude
• Return Loss: > 15dB at 270Mb/s
• Wide Band Jitter: < 0.2UI

Electrical:

• Voltage: +12VDC
• Power: 10 Watts
• EMI/RFI: Complies with FCC Part 15 Class A
• EU EMC directive
