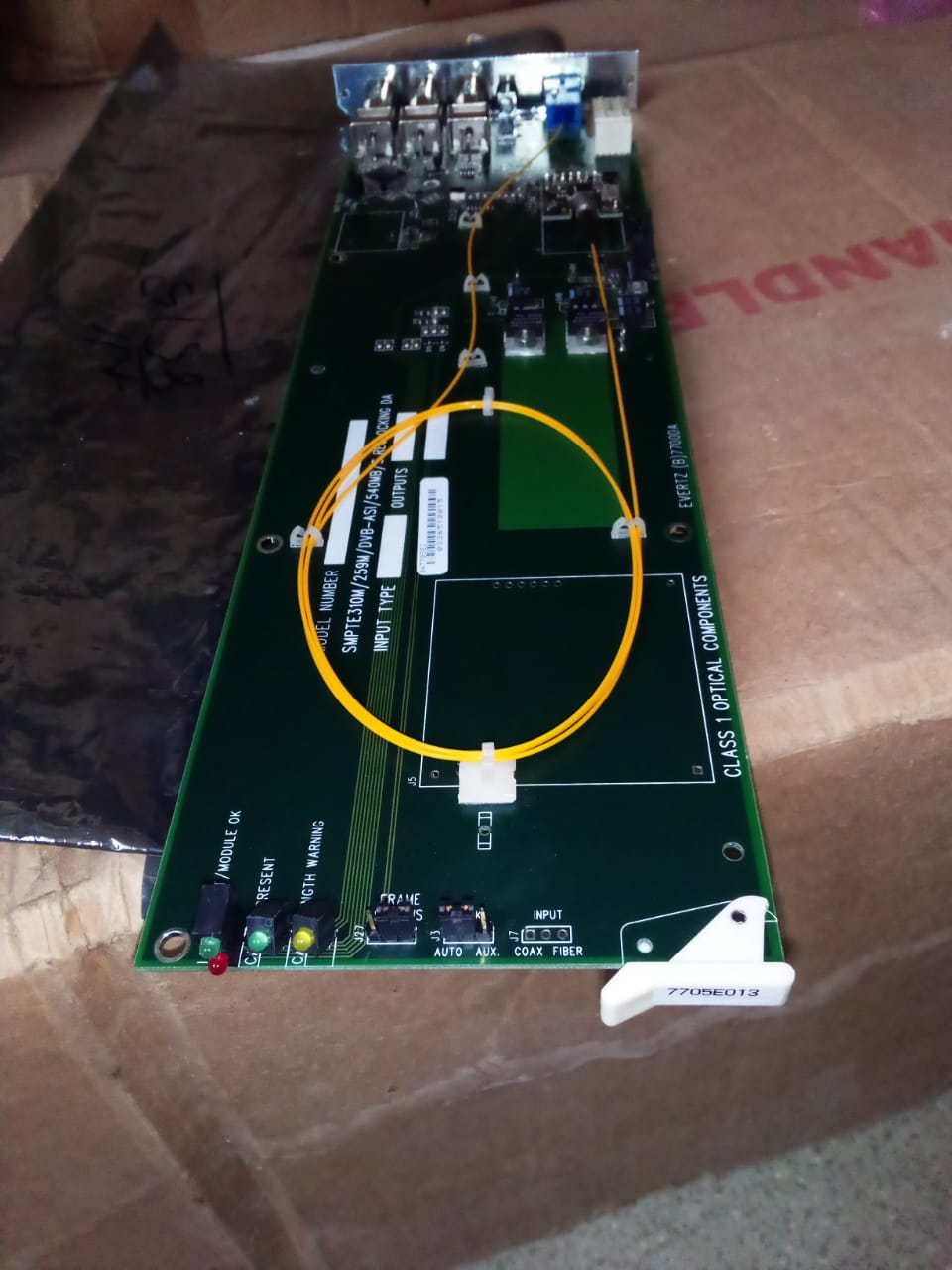

EVERTZ 7705E0 Card
In stock
Features:
- Serial Video Input
- Standard SMPTE ST 259 A, B, C, D, SMPTE ST 297, SMPTE ST 305, SMPTE ST 310, SMPTE ST 344, M2S,DVB-ASI
- Number of Inputs: 1
- Serial Video Input
- Standard SMPTE ST 259 A, B, C, D, SMPTE ST 297, SMPTE ST 305, SMPTE ST 310, SMPTE ST 344, M2S,DVB-ASI
- Number of Inputs: 1
- Connector BNC per IEC 61169-8 Annex A
- Equalization Automatic to 300m @ 270Mb/s (Belden 8281)
- Return Loss > 15dB up to 540Mb/s
- Serial Video Output
- Standard Same as input
- Number of Outputs 2 reclocked
- Connector BNC per IEC 61169-8 Annex A
- Signal Level 800mV nominal
- DC Offset 0V ±0.5V
- Rise/Fall Time 900ps nominal
- Overshoot < 10% of amplitude
- Return Loss > 15dB up to 540Mb/s
- Wideband Jitter < 0.2UI
- Optical Output
- Number of Outputs 1
- Connector SC/PC, FC/PC female housing
- Return Loss > 14dB
- Nominal Wavelength 1310nm, 1550nm
- Optical Power
- 1310nm FP -7dBm ±1dBm
- 1550nm DFB 0dBm ±1dBm
- Electrical
- Voltage +12V DC
- Power 6 Watts
