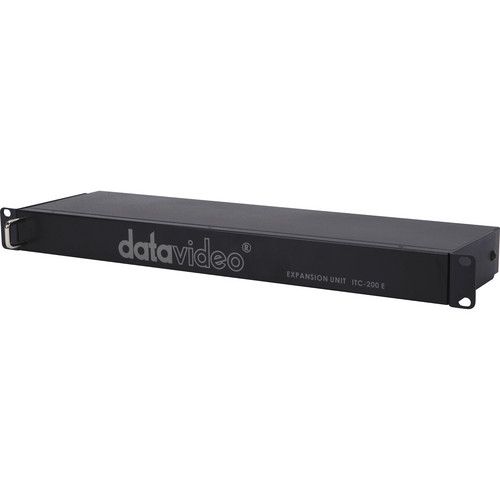

Datavideo ITC-200E 8-Channel Intercom Expansion Unit

Designed for multi-camera productions, the Datavideo ITC-200E 8-Channel Intercom Expansion Unit allows you to add eight more bi-directional camera operator communication channels to the Datavideo ITC-200B multi-camera intercom system. Each channel is bi-directional which enables the technical director to communicate with all of the members of the production team, and vice versa. The expansion unit includes four camera operator belt packs, four 20 meter XLR cables for connecting to the belt packs, and four camera operator headsets with microphones. Additional belt backs, cables, and headsets are available for purchase. The ITC-200B and the ITC-200E expansion unit each occupy one 19″ rack unit space.

Cascade Out

The expansion system features a CASCADE OUT port that you can connect to the CASCADE IN port on the Datavideo ITC-200B intercom system via the General Purpose Interface (GPI) cable, allowing the ITC-200B to control both devices at the same time

XLR Connectors

The expansion system features eight XLR connections that send bi-directional audio signals between the camera operators and the technical director. Channels 9-12 receive tally light information from tally channel C and channels 13-16 receive tally light information from tally channel D

Tally Lights

The system includes four tally lights that connect to the camera operator belt packs. The tally lights use bi-color LEDS to indicate the on-air status of the cameras. A red light indicates the camera is live. An amber light indicates the camera is cued. The rack unit features two tally inputs labeled C and D. The tally inputs connect to a video switcher such as the Datavideo SE-900

Ground Terminal

To remove electromagnetic noise from the signal chain, the system includes a ground terminal with a sprocket. For best results, the ground should be at least 1.0 square mm in cross sectional area
