Clear-Com PANEL BREAKOUT 4 PORT IFB
In stock
RU 4-Port XLR-3 IFB Intercom/Audio Cue break out matrix interface. Each IFB output and prog audio / Cue audio uses XLR-3 I/O and is transformer balanced. Connections to the matrix use RJ-45.
In stock
1RU 4-Port XLR-3 IFB Intercom/Audio Cue break out matrix interface. Each IFB output and prog audio / Cue audio uses XLR-3 I/O and is transformer balanced. Connections to the matrix use RJ-45.

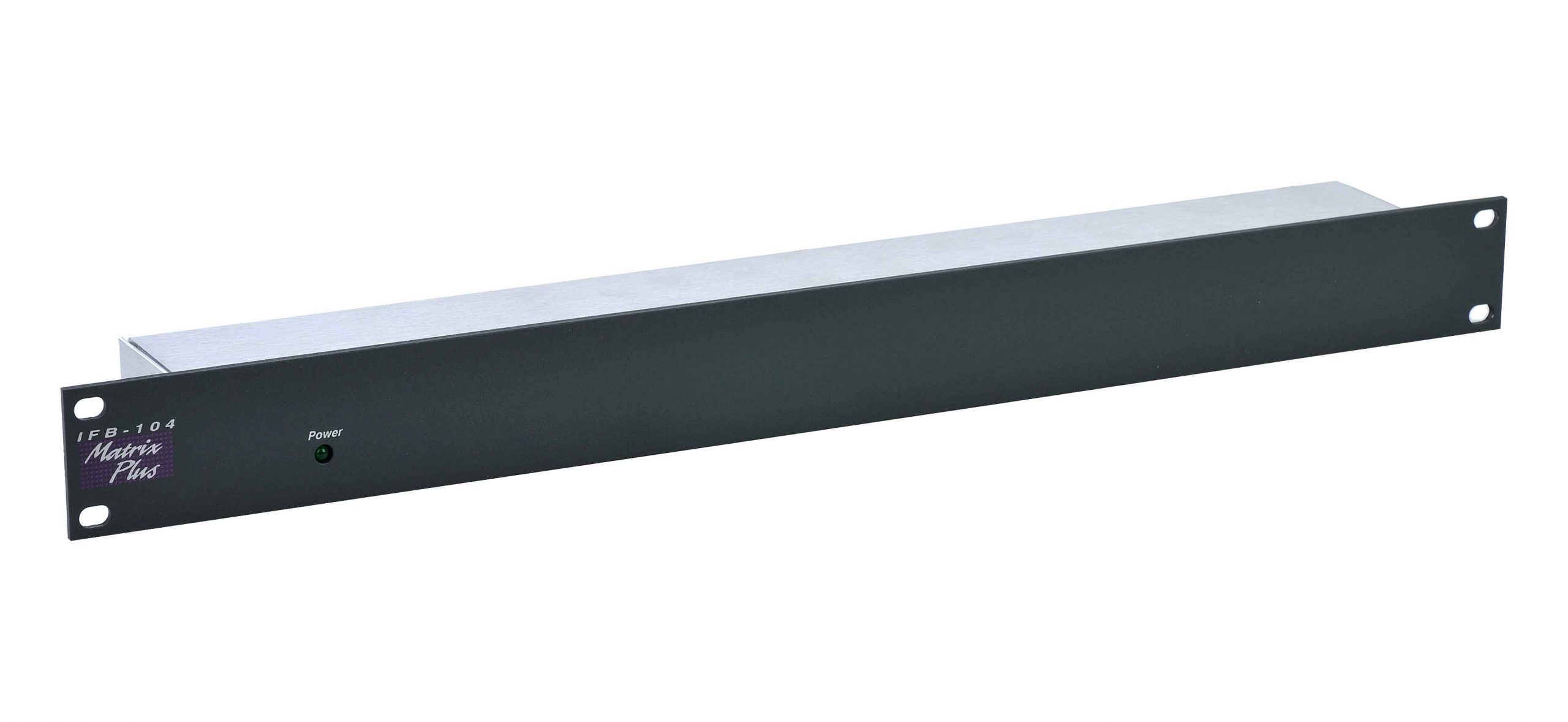

The IFB-104 is a 1RU panel that directly connects up to four IFB feeds to the ports of a digital matrix system. Individual or multiple IFB ear buds or headphones may be used directly from each connected matrix port. The IFB-104 does not require external power to drive its circuitry. Each channel has a rear-mounted wet/dry switch, allowing either direct connection or powering via a party-line intercom power supply. The signal from the matrix port is transformer-coupled to the XLR connector output.
INDICATORS
- “Power-on” LED
CONNECTORS
- Program Input: (4) 3-pin XLR female
- To Matrix Frame: (4) RJ-45
- Talent: (4) 3-pin XLR male
- DC Power: (1) 3-pin XLR male
- (1) 3-pin XLR female
PROGRAM INPUT
- Type: Transformer isolated
- Impedance: 600 Ohms bridging
- Level: 0 dBv
HEADPHONE TALENT RECEIVER OUTPUTS
- Impedance: 600K Ohms transformer balanced
- Power: 1 mW into 600 Ohms
LINE INPUT (2-PAIR TALK TO MATRIX)
- Type: Transformer balanced
- Impedance: 600K Ohms
- Level: 0 dBv nominal
- Frequency Response: 100 Hz-15 kHz, +/-2 dB
SIZE & WEIGHT
- Size: 1.75″ H x 19″ W x 2″ D (44 x 483 x 51 mm)
- Weight: 1.8 lb. (.82 Kg)
