Canare Audio Video Composite Cable
In stock
Key Features
- For ENG / EFP / OB Applications
- 75 Ω Video Coax Channel

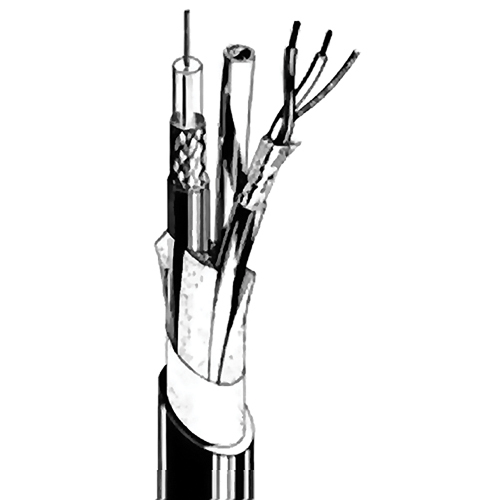

The Canare Audio Video Composite Cable is lightweight with a very thin OD (Outer Diameter) of 0.382” (9.70 mm). This cable includes two 25 AWG-balanced audio lines (Canare L-2B2AT type twisted pair with foil shield and drain wire) and a single 75 Ω video coax channel (Canare L-3C2V, featuring a PE dielectric with solid copper center conductor).
/meter
In stock
The Canare Audio Video Composite Cable is lightweight. This cable includes two 25 AWG-balanced audio lines (Canare L-2B2AT type twisted pair with foil shield and drain wire) and a single 75 Ω video coax channel (Canare L-3C2V, featuring a PE dielectric with solid copper center conductor).
- Used for linking audio video equipment and as an extension for video cameras
- Can also be used for the following applications: OB vans, ENG / EFP, A/V Combo Snakes, and home theaters
- Features a combination 2 audio and 1 video lines in the same cable bundle
- Stays flexible even in sub-zero weather
- Special fillers prohibit cable component twisting
- Use with Canare 75 Ω BNC F or RCA crimp plugs
- Designed for fixed installation
- Black finish
Cross Section Area
- 0.20 mm², 1/0.5A quantity / mm
- #24 (AWG)
Outer Diameter
- Nominal: 0.382″ (9.7 mm)
- Channel: 0.126″ (3.2 mm) audio
- 0.173″ (4.4 mm) video
Bundled Cable Type
- Audio: 2 x Twisted Pair 2B2-AT
- Video: 1 x Coax 3C-2V
Conductor Strand
- 16/0.12 quantity/mm
- #25 (AWG)
Material
- Insulation Type: IPE, orange & white color code (audio)
- Clear color code (video)
Channel Jacket
- Audio: PVC, Grey / red & blue color code
- Video: PVC, black color code
Shield Coverage
- Audio: AL Foil 100% + TC Drain Wire (22AWG)
- Video: 97% or more (braid)
Impedance
- 75 Ω
Attenuation
- 4.1 dB per 100 m at 10 MHz
Dielectric Strength
- 500 VAC / 1 minute
Conductor D.C.R.
- Audio: At 1,000′ At 100 m: Video: At 1000′: At 100 m:
Shield D.C.R
- Video: At 1000′: At 100 m:
Nominal Capacitance
- Audio: 23′ pF (73 pF / m) capacitance between conductor
- 37′ pF (120 pF / m) capacitance between conductor and shield
Length
- 99m
Weight
- 48.50 lb (22 kg)
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
