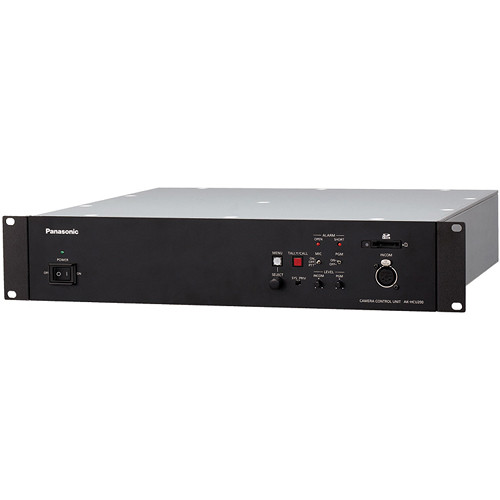

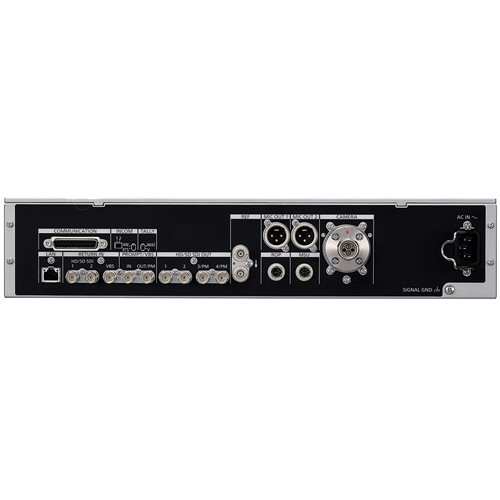

Panasonic AK-HCU200 – CCU for AK-HC3800

Video Output

• SD/HD-SDI: 4 lines (2 lines shared with picture monitor output*1)
• Analog composite: 1 line (1 line shared with picture monitor output*1)

Return Input

• HD SDI/SD SDI: 2 lines (switched depending on the setting)
• VBS: 1 line

Prompter Input

• 1 line, Analog composite

Reference Input

• 1 line (1 loop-through line) Black burst/tri-level

Microphone Output

• 2 x XLR, 3-pin, male, 0 dBm/600 Ω

Intercom

• XLR, 5-pin, female
• Input: -55 dBu to -10 dBu
• Output: 100 mW (max.)

Communication

• Intercom input/output: 2 lines (1/2*1) (0 dBm, 600 Ω, RTS/4W*2)
• PGM: 1 line, input (0 dBm/600 Ω)
• Tally input: Red, Green, 1 input each

Interface

• ROP: RS-422, 1 line, 12 V output
• MSU: RS-422, 1 line, GPI for control
• LAN: 1 x RJ45 (10Base-T/100Base, crossover cable, category 5 or above)

Power Supply

• 100 V to 240 V AC, 50/60 Hz

Power Consumption

• 170 W (Without CAMERA connected: 32 W)

Camera Power Pass Through Capacity

• 190 VDC, 0.6 A

Operating Temperature

• 32 to 104°F / 0 to 40°C

Dimensions

• (WxHxD) 16.7 x 3.5 x 15.7″ / 424 x 88 x 400 mm

Weight

• 14.6 lb / 6.6 kg
